To configure, navigate to SITE COMMAND->SETUP OPTIONS
NOTE: Conveyor Drive is featured in the C5000 Series only.
When not using "Alternative Pulse Manager", your sungear/pulse target along with your gearbox and sprocket must be configured along with a desired Target Inches Per Pulse for the pulse generator to properly analyze your setup. This is used when your pulse interval is faster than 100 milliseconds and the high precision functions of the high-speed counter card are used to "Step-down" the pulse for the logic to properly calculate the advancement of vehicles in the tunnel.

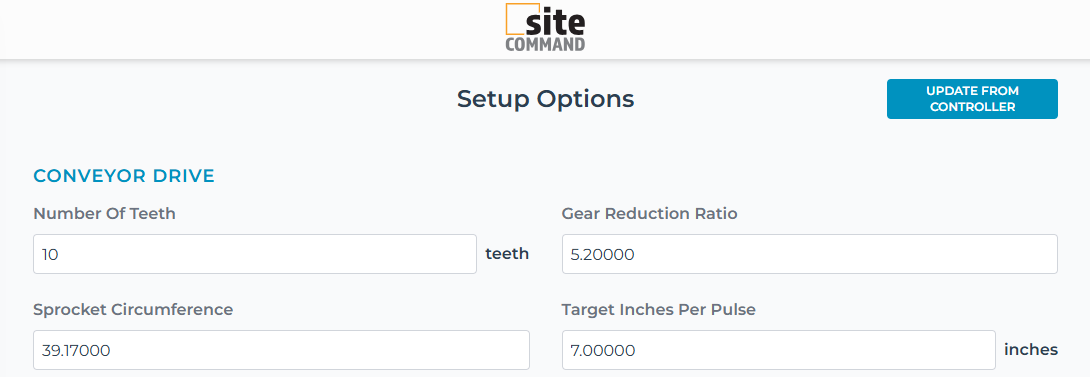

Number of Teeth: Number of Teeth or Target marks on your Pulse Target
Gear Reduction Ratio: Gear Reduction ration of your Conveyor Drive
Sprocket Circumference: Sprocket Circumference of your Conveyor Drive Sprocket
Target Inches Per Pulse: Generated Step-Down output of the pulse generator to be lined up with what you assign in "Setup-Options" for Inches Per Pulse.
