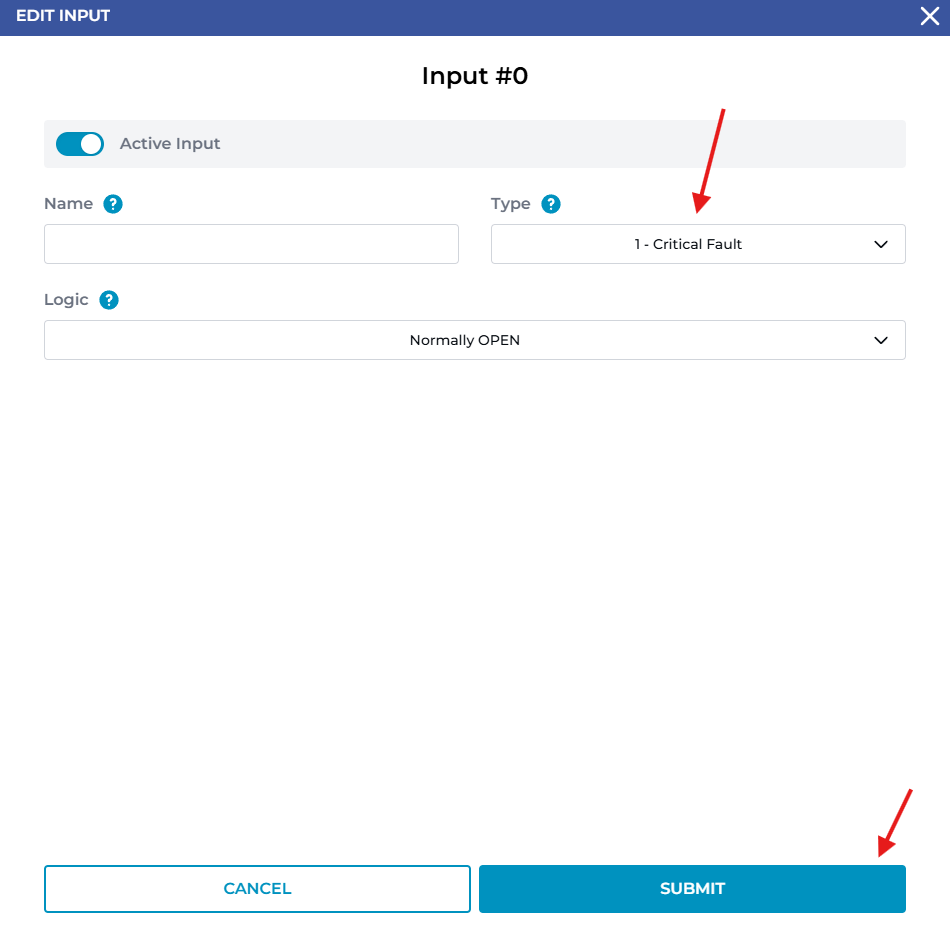

Type - 1 - Critical Fault

Type - 1 - Critical Fault will disable conveyor along with all outputs from activating. When input logic is set to Normally OPEN, if input turns ON or goes 'high', full system will shutdown.

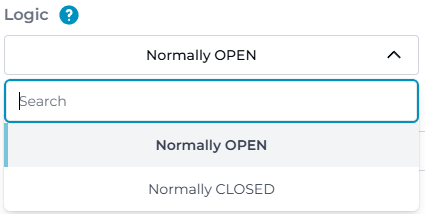

Logic

This defines for the system what "off" and "on" mean.

Normally OPEN

When set to Normally OPEN, the system will interpret a low signal as "input is off". A low signal indicates the circuit is not conducting electricity while at rest.

Normally CLOSED

When set to Normally CLOSED, the system will interpret a hi signal as "input is off". A hi signal indicates the circuit is conducting electricity while at rest.

Active Input

Active Input Toggle switches input between being 'used' and 'not used' as it relates to the controller. When toggled OFF, input will not affect the controller status in any way.
