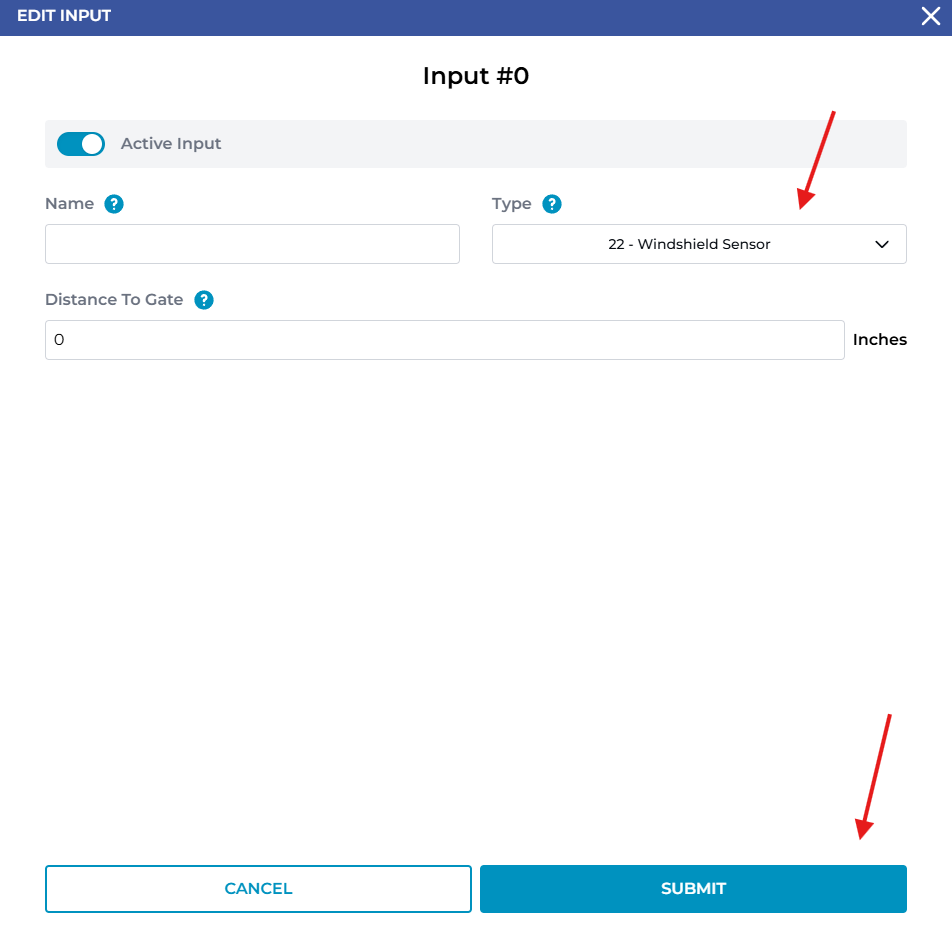

Type - 22 - Windshield Sensor
This input, when on (predefined as a normally open contact) will instruct the system to understand this location as where a windshield has been detected by the system. With this information, the Cruz Car Wash Controller will command all outputs set for Equipment Function - 18 - WINDSHIELD DEVICE as per that output's configuration.
For a detailed explanation of outputs and how to configure them for Equipment Function - 18 - WINDSHIELD DEVICE, please see the following and its associated articles: Output - Equipment Function - 18 - WINDSHIELD DEVICE
NOTE: If used in conjunction with Motor City Wash Works Cruz Sonar detection system, the expected accuracy of windshield detection is plus or minus ten (10) inches.
Distance to Gate
Distance to Gate is the value (in inches) the input device is from the entry gate photo eye.
Active Input
Active Input Toggle switches input between being 'used' and 'not used' as it relates to the controller. When toggled OFF, input will not affect the controller status in any way.
