Discrete Input - Type - 4 - Prep Gun #2 Button

Type - 4 - Prep Gun #2 Button

This input, when on (predefined as a normally open contact) will instruct the system to turn on any output(s) assigned Asset Code - Prep Gun, Asset Iteration 2.  This input is typically used when operators would like a physical push button to activate a prep gun, in addition to the Prep Gun #2 software button(s) available via HMI.

For a full explanation of outputs as well as a detailed description of the general configurations shared by all outputs, please reference the article Outputs.

For a full explanation of inputs as well as a detailed description of the general configurations shared by all inputs, please reference the article Discrete Inputs Summary

For a detailed explanation of Asset Code, Asset Iteration and Asset System Level, please reference article Asset Codes, Asset Iterations and Asset System Levels Explained

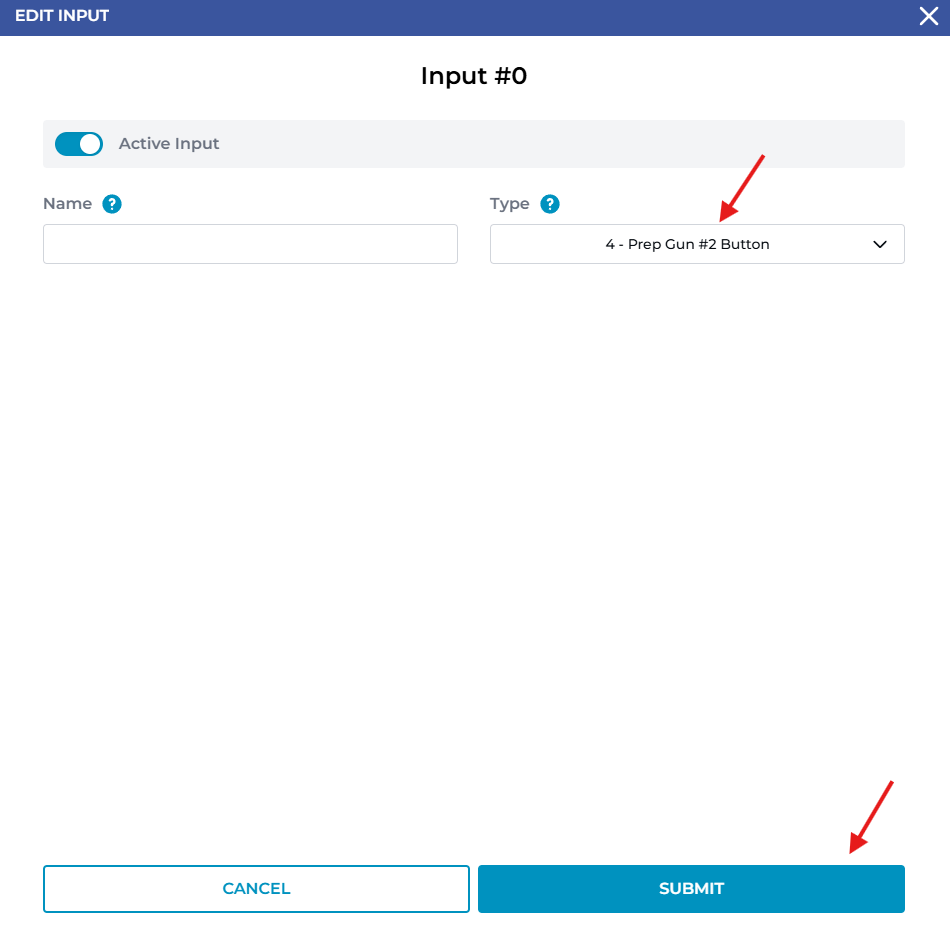

Active Input

Active Input Toggle switches input between being 'used' and 'not used' as it relates to the controller. When toggled OFF, input will not affect the controller status in any way.
